Diesel Injector Nozzle Pressure Tester, Fuel Injector Nozzles Tester With Dual Scale Gauge To Adjust Injector Nozzle Pressure And Test Diesel Injector Nozzle Pop Pressure

I. Basic Product Information

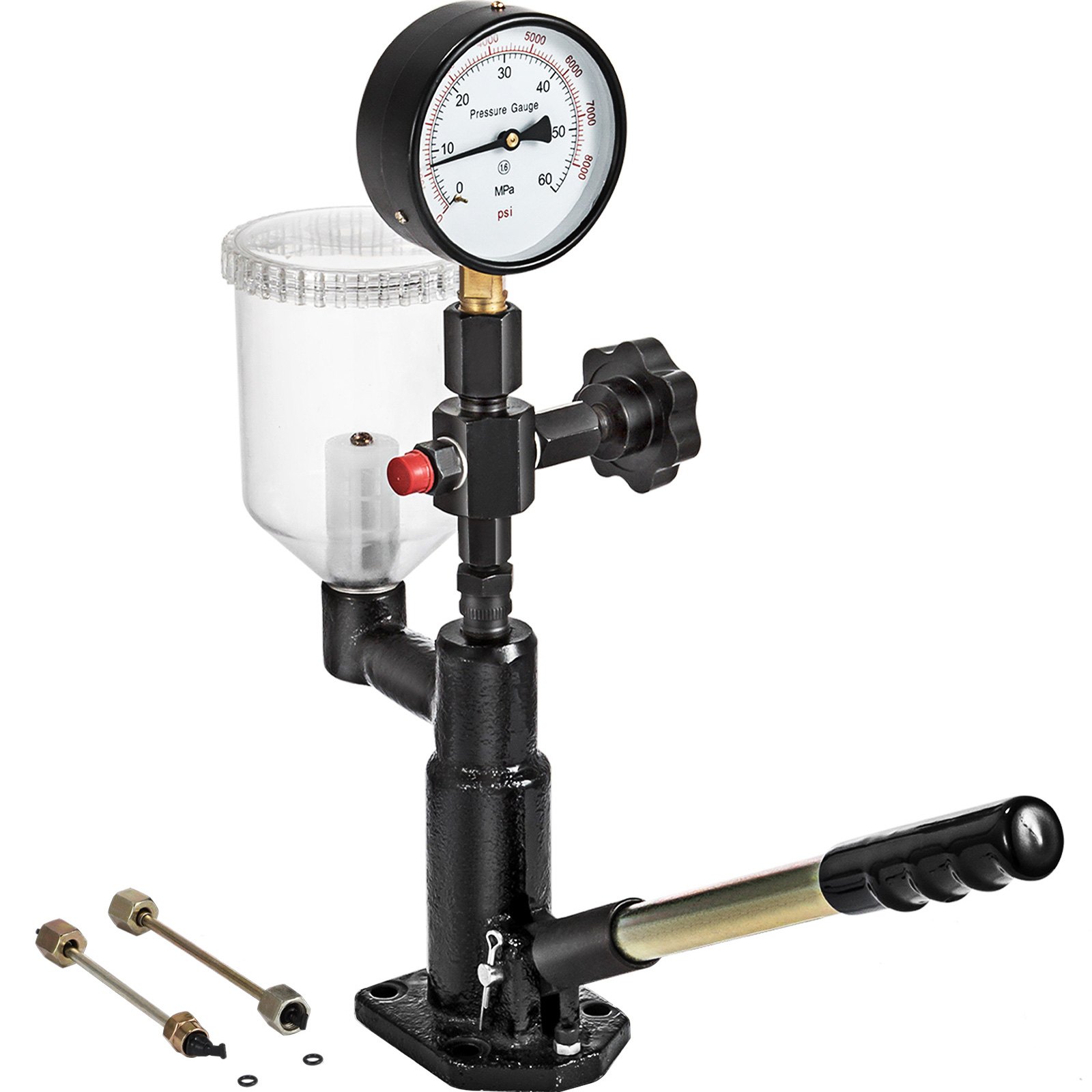

Product Name: VEVOR Diesel Fuel Injector Nozzles Tester 60MPa (60MPa Diesel Injector Nozzle Tester)

Core Positioning: Dedicated testing equipment for diesel engine injectors, used to calibrate injector parameters, troubleshoot faults, and ensure the normal operation of the injection system.

Core Functions: Capable of performing multiple mechanical performance tests, including injector opening pressure adjustment, seal leakage testing, spray atomization testing, and injection characteristic testing.

II. Key Product Features

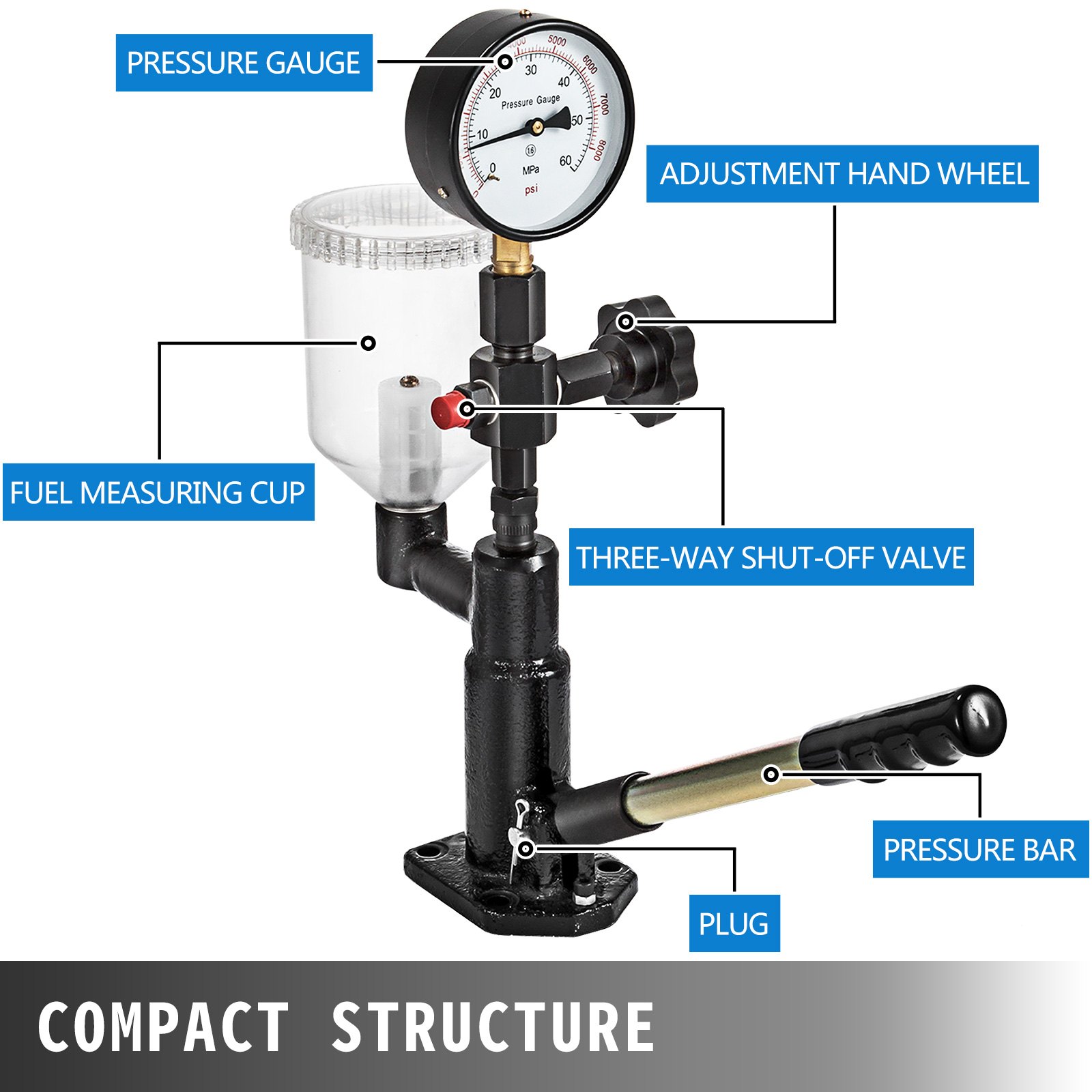

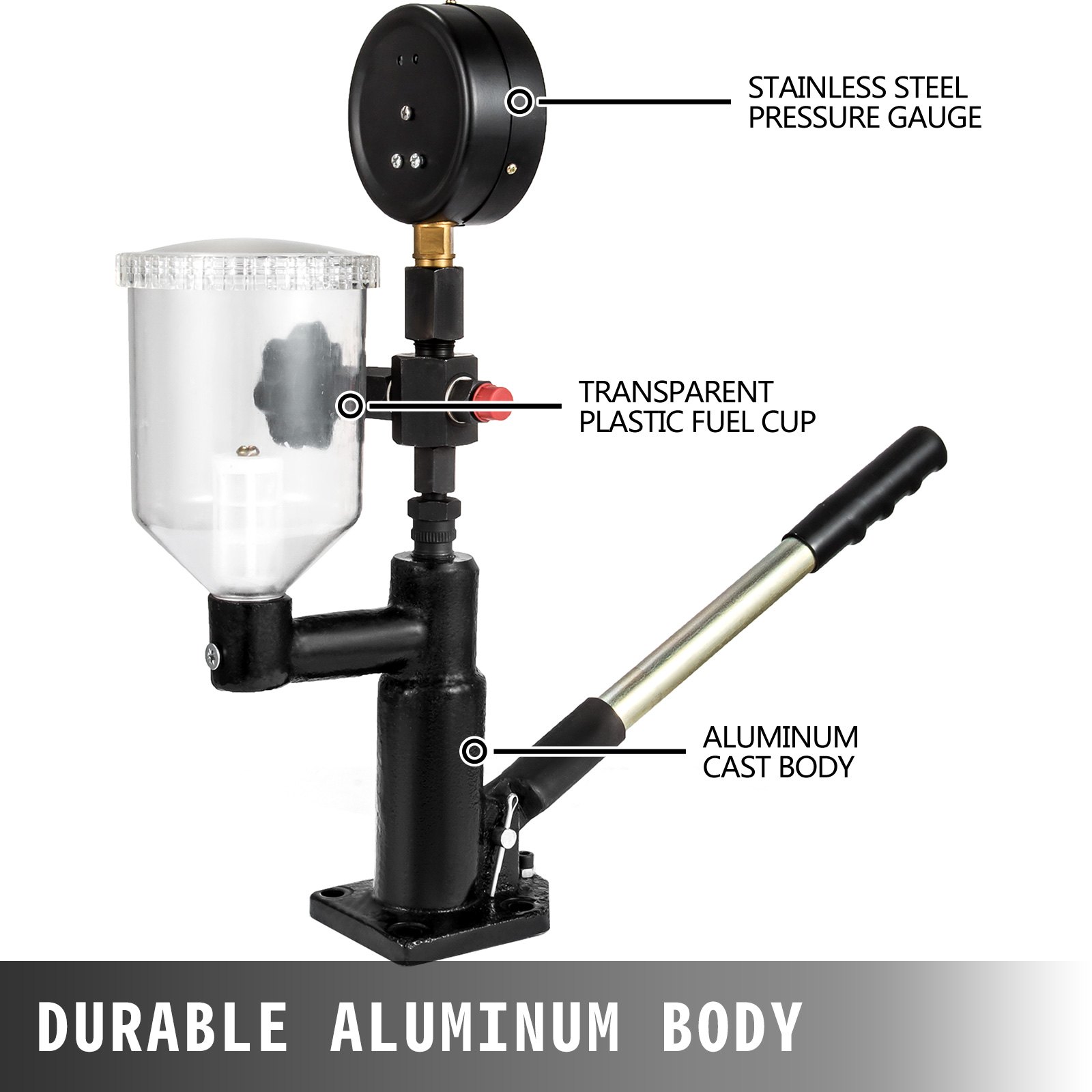

Durable Material, Long-Term Stable Use: The main body is constructed of high-quality aluminum alloy, equipped with a stainless steel pressure gauge and a transparent plastic oil cup. The materials are oil-resistant and corrosion-resistant, adaptable to long-term use in maintenance scenarios, and reduce component wear.

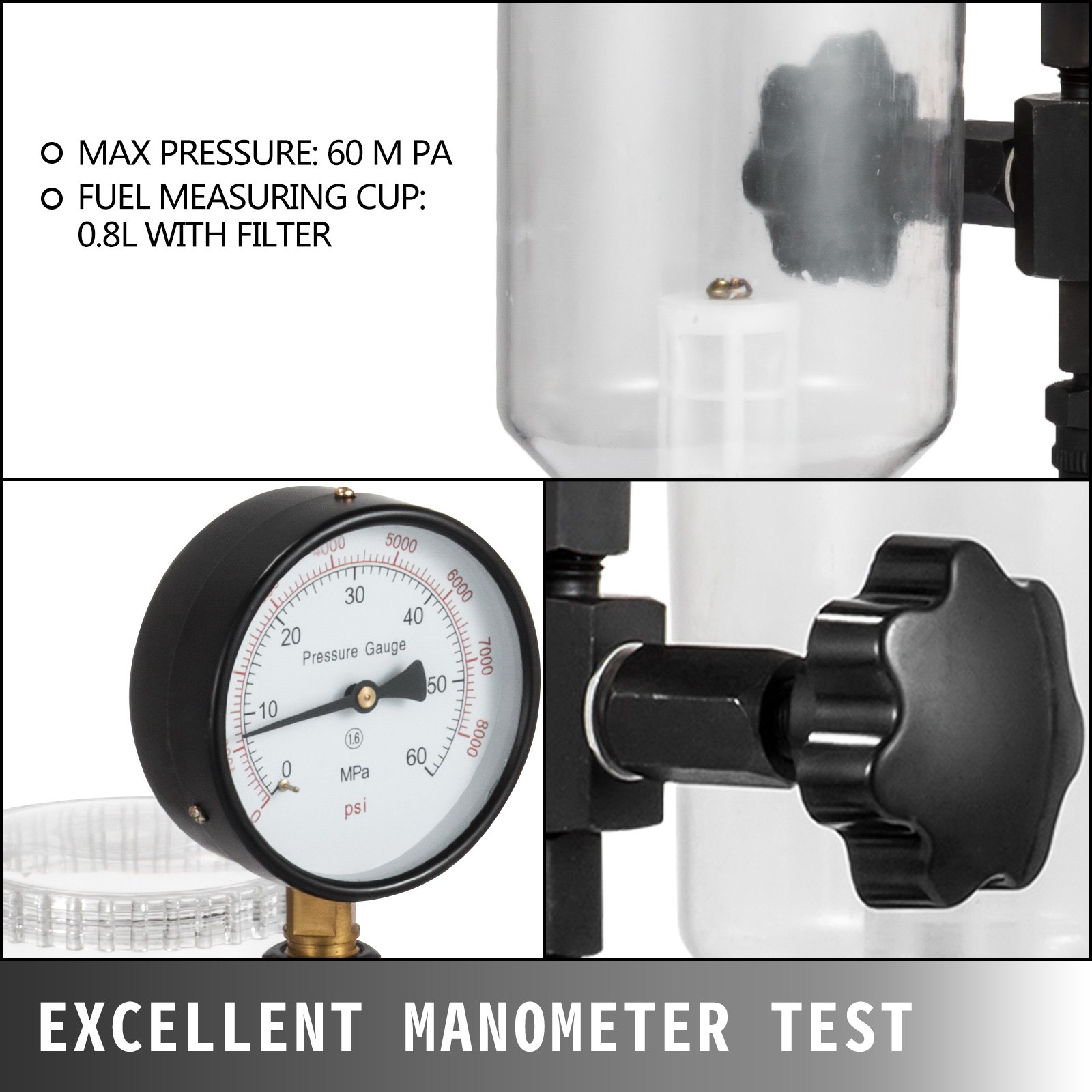

Wide Measuring Range and High Precision, Reliable Test Data: Equipped with a 0-60MPa (0-600bar/0-8000PSI) dual-scale pressure gauge, supporting multi-unit readings and adapting to different testing standards; built-in 5-micron Bosch original filter element filters fuel impurities, ensuring fuel cleanliness during testing and improving data accuracy.

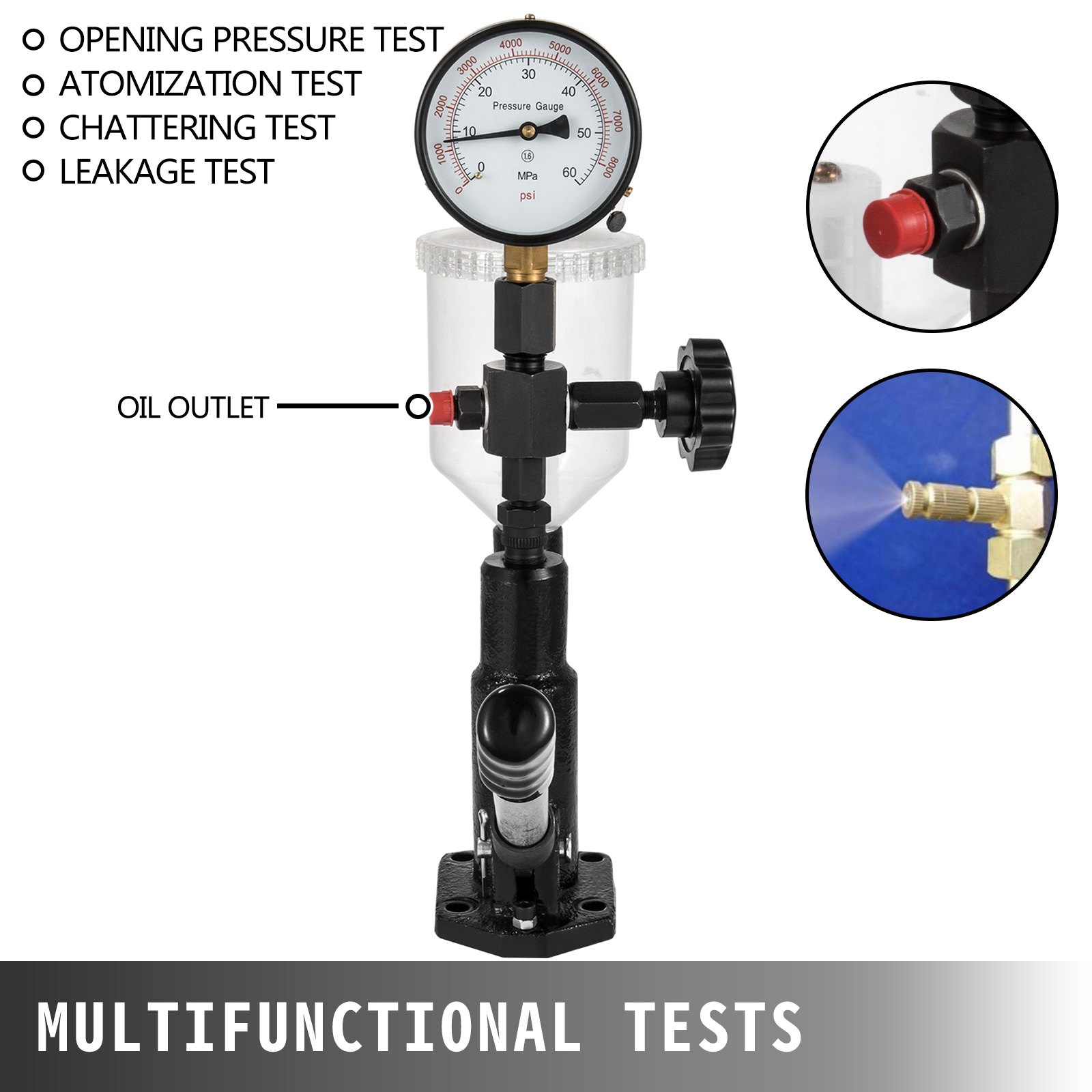

Multifunctional integration, covering all testing needs, completing 4 core tests in one stop:
* **Opening Pressure Test:** Precisely measures the pressure threshold when the fuel injector opens (supports ≥35.0MPa/350bar high-pressure testing).
* **Leakage Test:** Checks the fuel injector's sealing performance to prevent fuel leakage.
* **Atomization Test:** Observes the spray pattern to determine atomization uniformity.
* **Injection Characteristic Test:** Verifies the fuel injector's injection frequency and stability.

Safe and compact structure, convenient operation. The compact design includes a stable mounting base, preventing shaking during placement; equipped with a three-way shut-off valve to ensure operational safety and prevent sudden pressure rises; the 2/5-inch plunger orifice size provides stable injection power, and the interface is highly adaptable when connecting fuel injectors.

III. Detailed Specifications

Parameter Category | Specific Specifications
Color | Black
Measuring Range | 0-600bar (0-60MPa), 0-8000PSI
Maximum Detection Pressure | 60MPa (600bar), supports ≥35.0MPa (350bar) high-pressure detection
Applicable Diesel Engine Models | 6190/6200/6170 series diesel engines
Fuel Tank Capacity | 4000mL (4L)
Fuel Cup Capacity | 0.8L
Plunger Orifice Size | 2/5 inch (approx. 10.16mm)

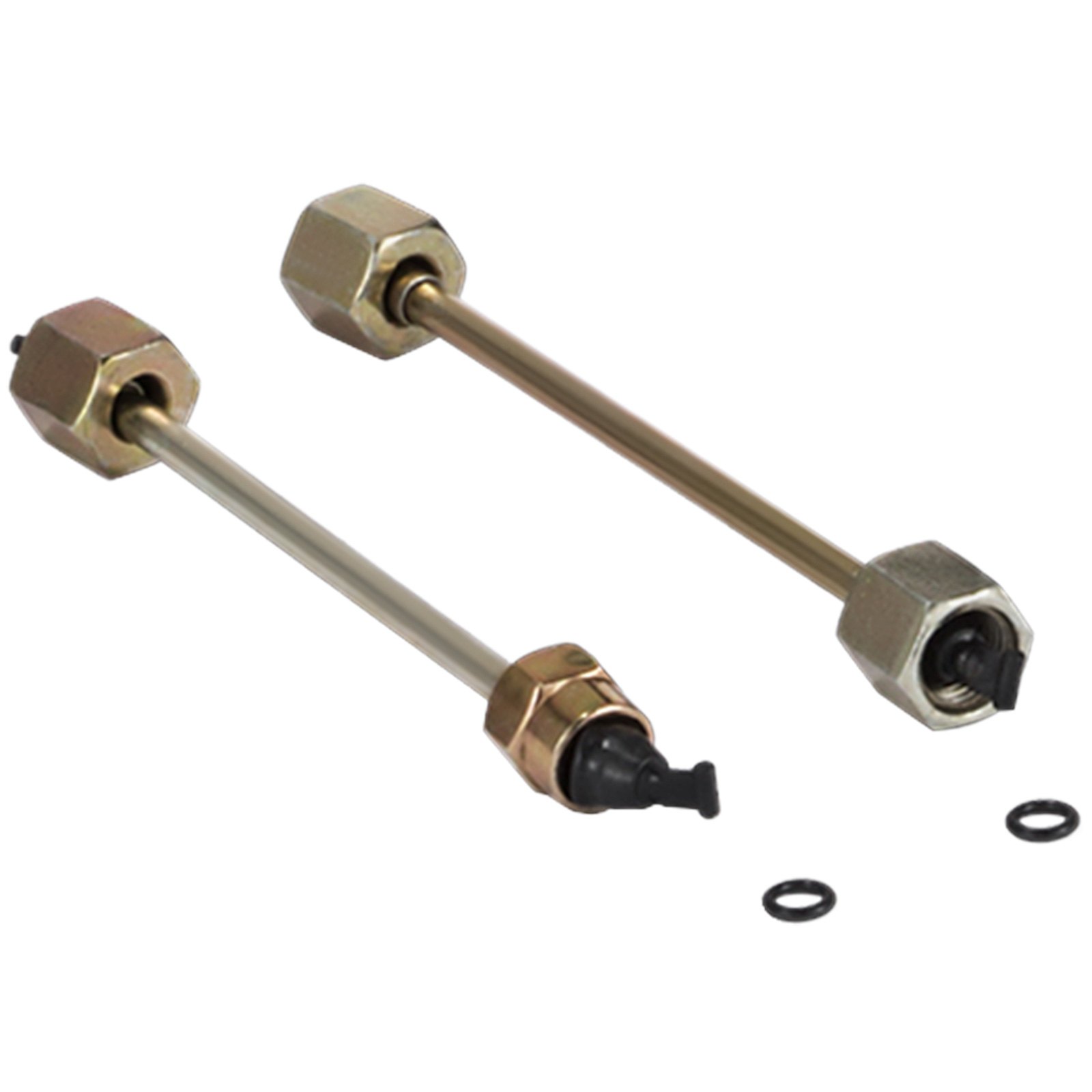

Nozzle Fitting Models | M14×1.5-M14×1.5, M14×1.5-M12×1.25, M14×1.5-M12×1.5
Applicable Equipment Types | Automobile and tractor diesel engines (excluding common rail diesel injectors CRDI)

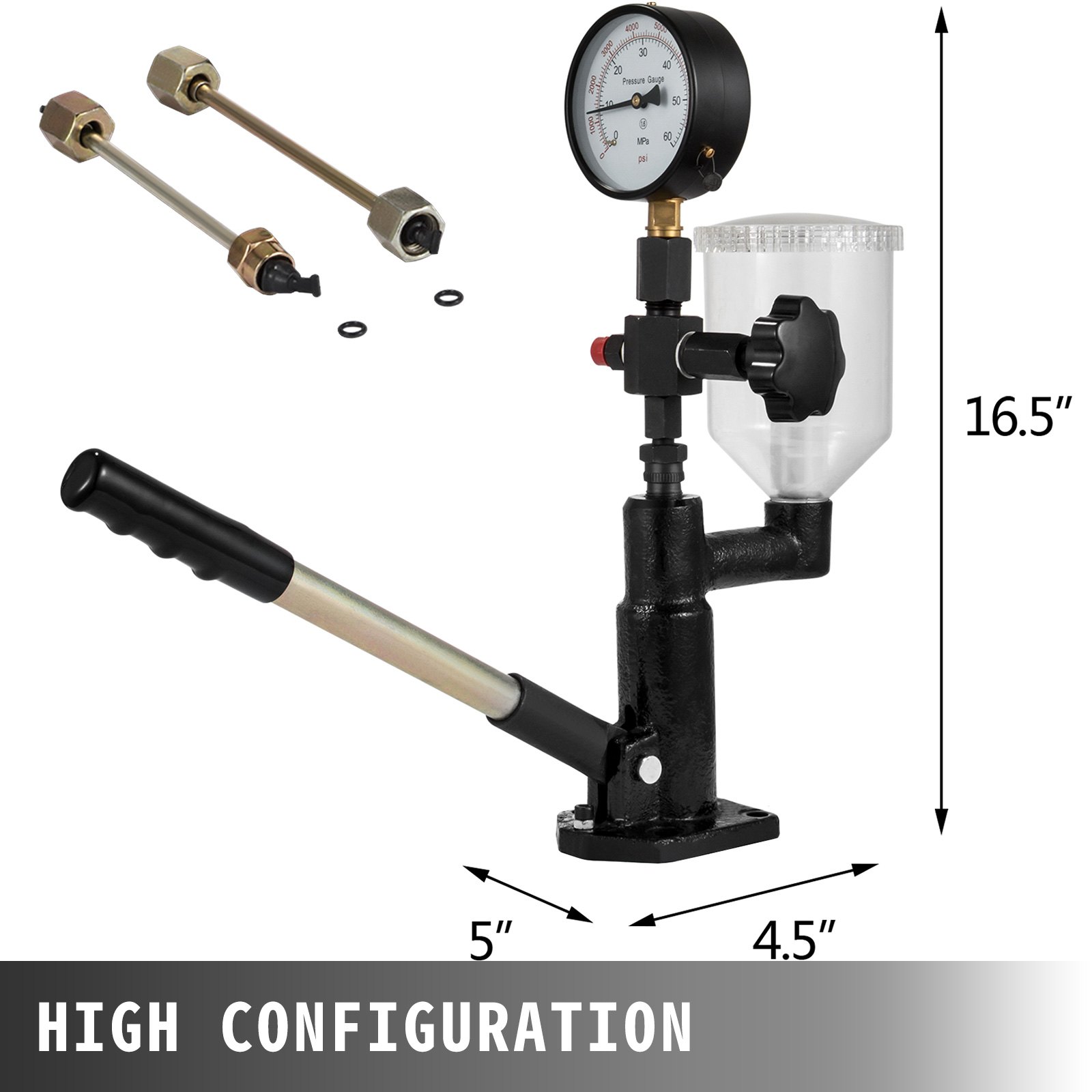

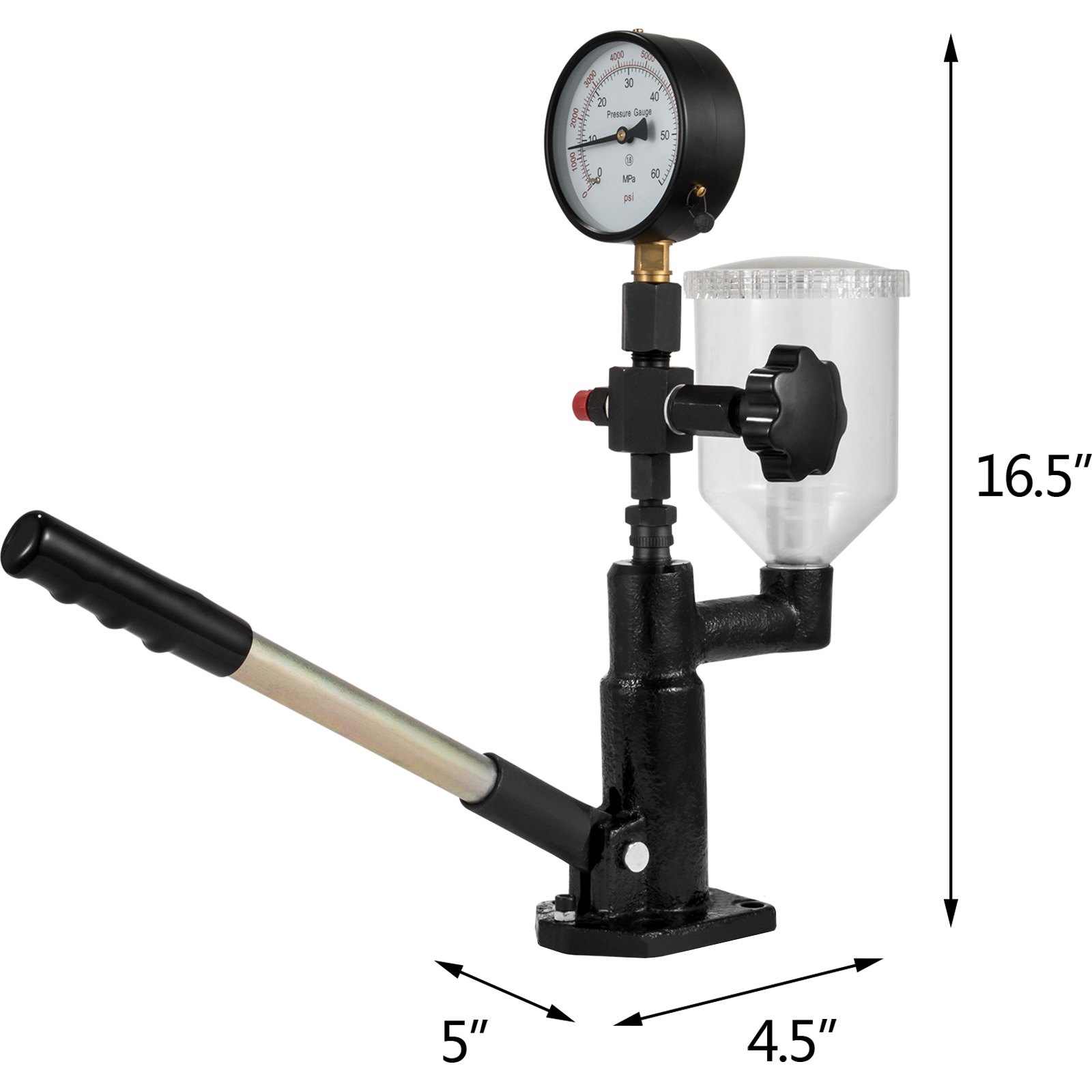

Packaging Dimensions | 19×11×7 inches (48×26×17cm)
Gross Weight | 14 6kg

IV. Packaging Contents List

1× Diesel Injector Tester (including main body, pressure gauge, fuel tank, fuel cup, and other integrated components)

V. Applicable Scenarios and Limitations

1. Applicable Scenarios

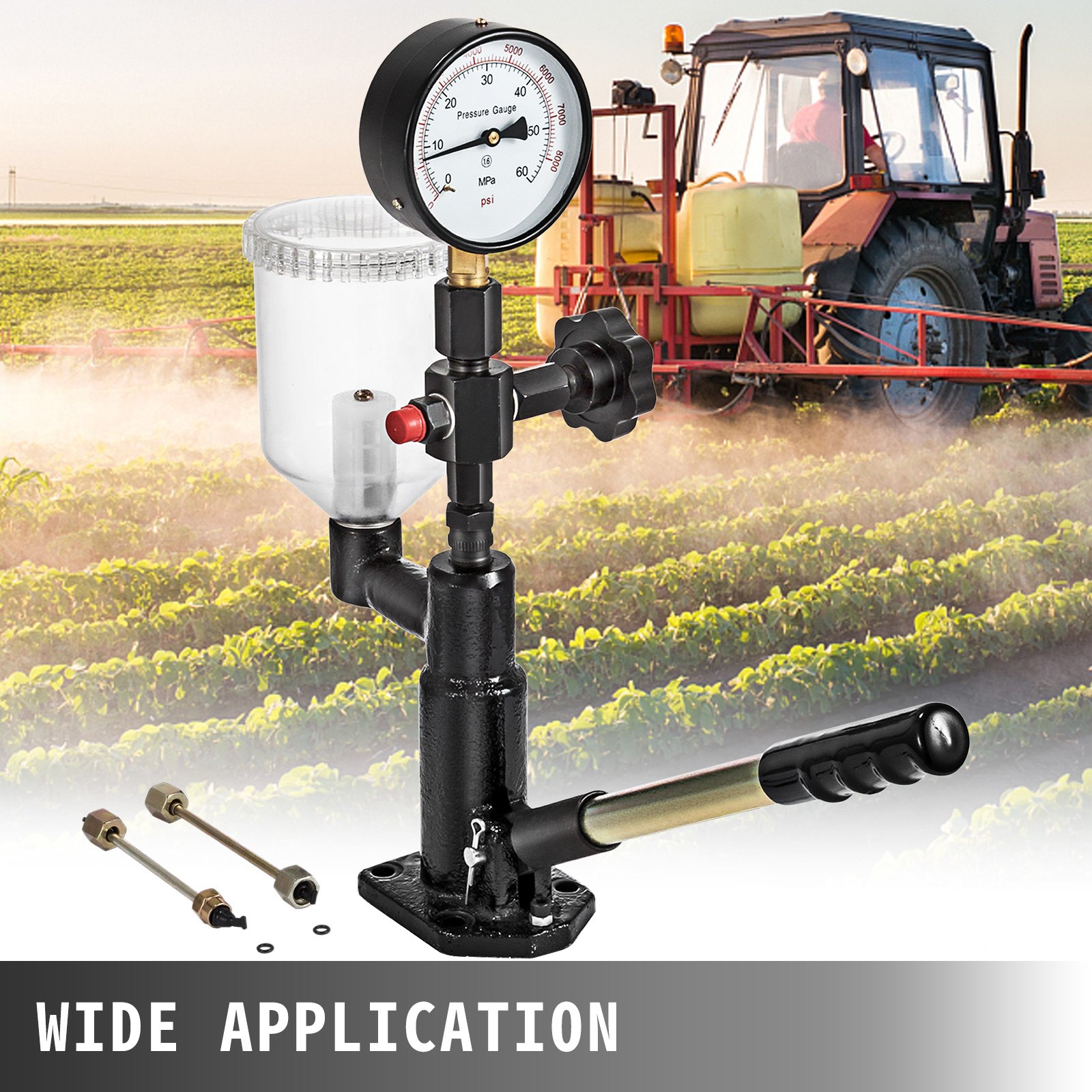

Equipment Type: Injector testing and calibration for automotive diesel engines and tractor diesel engines
Usage Locations: Professional repair scenarios such as auto repair shops, agricultural machinery repair stations, and diesel equipment maintenance workshops

2. Usage Limitations
Not applicable to common rail diesel injectors (CRDI), only supports testing of traditional mechanical diesel injectors.
